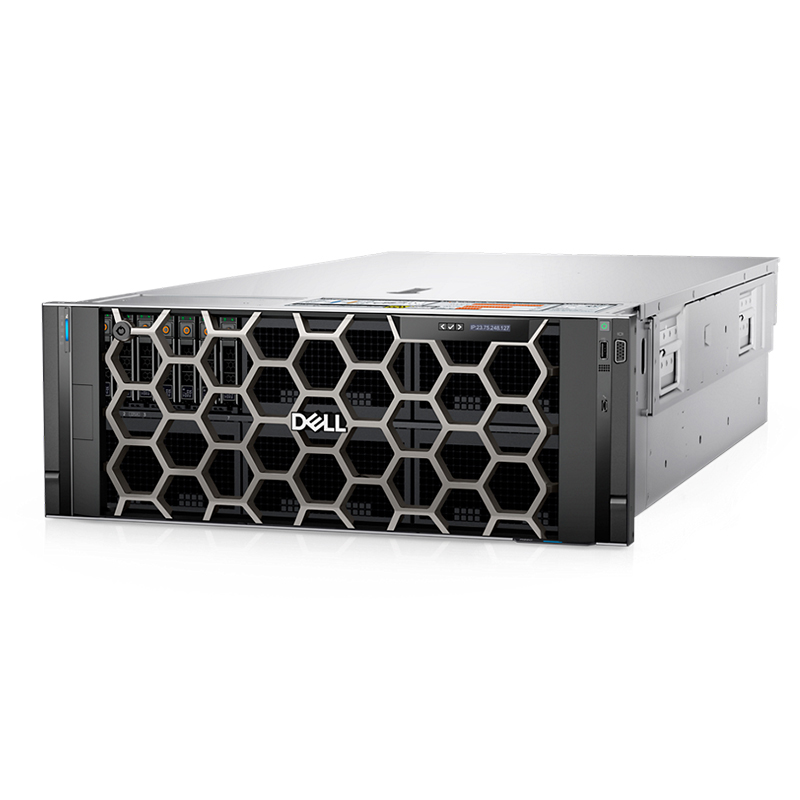

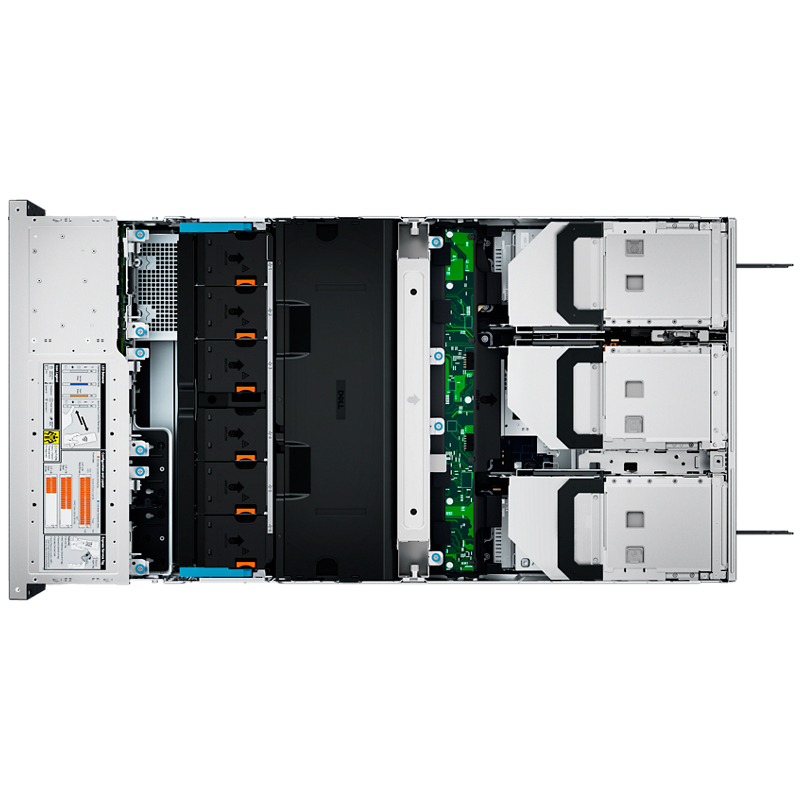

| Server Model | Dell PowerEdge R960 |
| Processor | Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor |
| Memory | Up to 64 DDR5 RDIMMs NVDIMM: Not supported, DIMM speed: up to 4800 MT/s |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Up to 24 2.5 inch SAS/SATA HDDs/SSDs Up to 24 2.5 inch NVMe SSDs, Up to 8 E3. S NVMe hard drives Back: Up to two 2.5 inch hot swappable SAS/SATA or NVMe HDDs, Internal: USB and internal BOSS-N1 (2 M.2 NVMe) are used as startup disks. No IDSDM. Bandwidth: Up to 32Gb NVMe/24Gb SAS/6Gb SATA |
| Power Supplies | 1100W, 1400W, 1800W, 2400W, 2800W |
| High availability | Hot swap/RAID controlled hard disk, high power air cooling configuration, PSU, BOSS-N1 (2 M.2 MVMe) |
| Dimensions | 4U x 434mm x 812mm |
| Form Factor | 4U Rack Server |
| Embedded Management | Licensing options for iDRAC9 Enterprise Edition and Data Center Edition; OpenManage Enterprise and plug-ins (Power Manager, SupportAssist, and Update Manager) iDRAC Direct, Quick Sync 2.0. |
| GPU Options | GPU not supported |
| Front Ports | VGA, 1 USB 2.0, iDRAC Direct mini USB, ID button and LED |

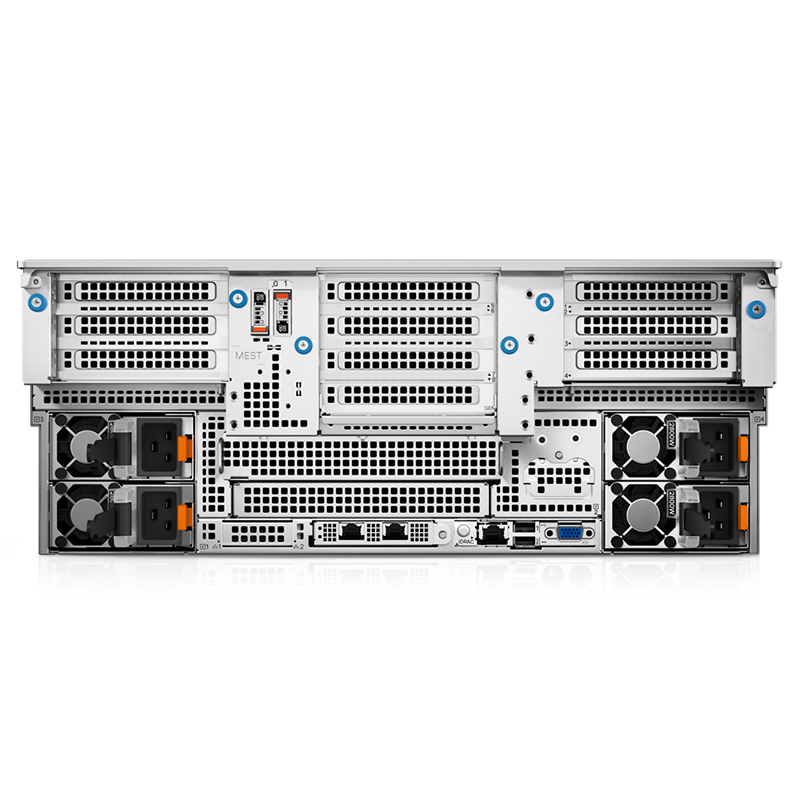

| Rear Ports | VGA, 1 USB 2.0, 1 USB 3.0, management RJ-45, 2 LOM RJ-45, 1 serial port (optional) |
| PCIe | Up to 8 PCIe Gen4 or Gen5 slots without SNAPI No CXL |
| Warranty | 3 years |
As a leading integrated IT solutions provider, we combine cutting edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services.
With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
We provide authorized computing servers, network storage, network switches, and accessories from top-tier brands including Huawei, xFusion, Dell, HPE, and Lenovo.
